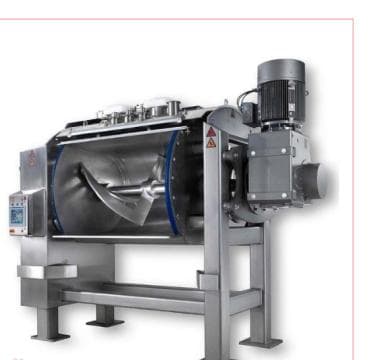

Sigma Mixer Machine


Sigma Mixer Machine or Sigma Kneader is unique mixer machine perform homogeneous kneading operation for heavier viscosity materials. Double Z blades design is the exclusive feature of machine that rotate in opposite directions. Sigma Blade Mixer is advanced mixer uses to achieve uniform kneading with shear force.

RC GLobal India Sigma Mixer Consists of a double U shape bowl welded together. There are two Z type sigma blades that rotate in opposite directions to each other. In order to obtain utmost kneading and mixing efficiency, clearance between the walls and the containers are kept as less as possible. Mixer trough and blades are made of mild steel, stainless steel of CF8 or CF8M as per individual requirements. Z blade mixer scores 10 on 10 in terms of safety as equipped with safety guards and grills.

Features of Sigma Mixer are as below:

  • Working capacity of up to 2000 liters and custom models available
  • Choice of stationary or tilting units for loading and unloading to suit your production needs; bottom valve discharge units also available.
  • Mono-screw extruder models available.
  • Jacketed trough design for heating or cooling.
  • Independent blade arm drive with differential rotating speeds and adjustable ratio.
  • Two sigma shaped blades fitted horizontally in each trough of the bowl.
  • Vacuum or pressure designs as per requirements.
  • The complete mixer is mounted on steel fabricated stand of suitable strength to withstand the vibration and give noise free performance.
  • Explosion-proof constructions available on demand.
  • 5 Step pulley for heavy load bearing capacity.
  • Vacuum generation system can be offered on demand.
  • Available in Stainless Steel 316, Stainless Steel 304 and Mild Steel materials.
  • Stainless Steel polish to Matt & mirror finish as per customer’s requirements.
  • Mild Steel finish with one coat of red oxide and two coats of epoxy paint.
  • Discharge option of hand wheel operated (manual) or hydraulic operated (automatic) offered.
  • Mineral wool insulation with cladding on jacket.
  • Tangential designed ‘Z’ blades offered for uniform mixing.
  • PTFE made shaft sealing provided for food grade compatibility.
  • Minimum gap between trough inner shell & blades remove possibility of sticking product.
